Brass Tacks · July 5, 2016
Storage protocol stacks
Originally posted July 5, 2016 at 02:01 PM on brasstacksblog.typepad.com/brass-tacks/2016/07/storage-protocol-stacks.html
Recovered from the Internet Archive: post and comments, captured Sep 10, 2025 · archived page (PDF)

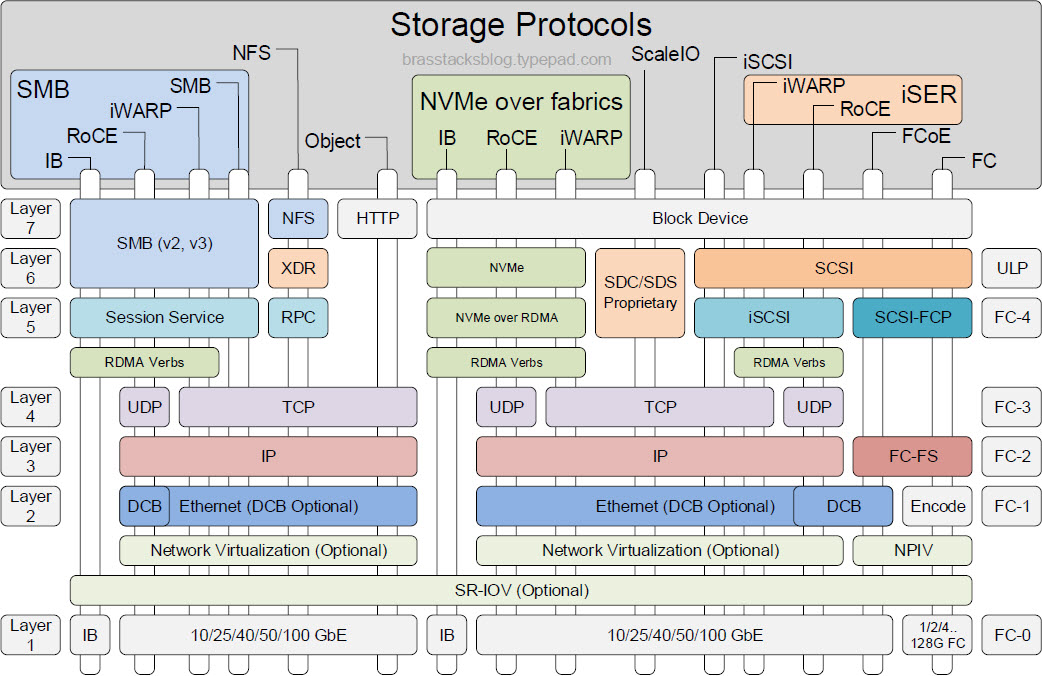

The following diagram was put together for my EMC World 2016 presentation. It provides a graphical overview of the most commonly used Storage Protocols and how they relate to one another.
A special thanks to David Black and Tony Rodriguez for their inputs!
Thanks for Reading!
Comments (2)
-
Wolfgang Birner · 10/21/2016 at 10:34 AM
-
bunny · 10/28/2016 at 03:26 AM
i think NVMe over FC should be in this picture too...
The comments to this entry are closed.
Hi Erik,
whatabout FCIP?
Maybe you can add this Protocol too?
Thanks for that great work!
Wolfgang
